Grasshopper's first wavefom submission
Jul 29th, 2012 at 9:06am

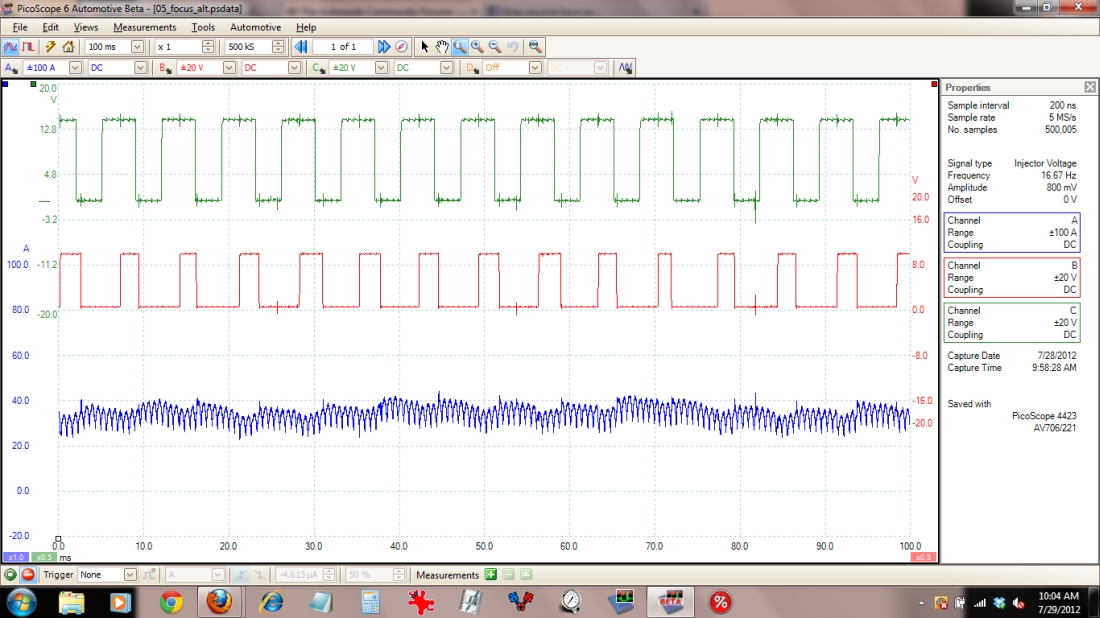

Hey guys , just trying to learn here and wanted to see if this was how to send a sample waveform 05 ford focus alt. . any input is always appreciated I used the auto set up on this and I've been watching the flash tutorial movies and using my scope every chance I get . Just got it via ups last Friday
Back to top

05_focus_alt.psdata (1021 KB | )

IP Logged

PRESTON
LSD Guide
Picogroup
*****
Offline


"Fix like a champion today"

Posts: 4,961

Jensen Beach, Florida, USA
Jensen Beach
Florida
USA
Gender: male
Re: Grasshopper's first wavefom submission
Reply #1 - Jul 29th, 2012 at 10:07am
Looks pretty good to me.  You can put much more time on the screen ( which I'm sure you are already aware of ) and really capture all aspects of your charging system under all operating conditions on one screen.  It looks like you were just trying to test post though, so in that respect you got it.
Back to top

Rogue Nerd in South FL
WWW WWW
IP Logged
